Swift - Design Pattern - Factory

Introduction

A factory is an object which has the role to create multiple objects. In other word this is a wrapper that we go through to instantiate different objects from the same place. Since we are going to show this through Swift, let me take an example of Factory producing iPhones.

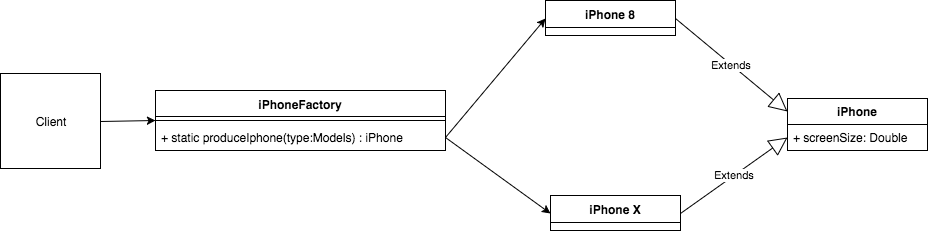

This is the final result of the (Simple) Factory Pattern :

Here are the different available iPhone at the moment :

• iPhone X
• iPhone 8

Let’s create an enum for all of these models :

enum Models {
  case X
  case iPhone8
}

These are the classes representing the different iPhones on the market. We use inheritance to save the common attributes.

class iPhone {
  var screenSize: Double

  init(screenSize: Double) {
    self.screenSize = screenSize
  }
}

class iPhoneX: iPhone {

  init() {
    super.init(screenSize: 5.8)
  }
}

class iPhone8: iPhone {

  init() {
    super.init(screenSize: 4.7)
  }
}

This is the factory which has the role to create different instance of iPhone.

class iPhoneFactory {

  static func produceIphone(type: Models) -> iPhone {
    switch type {
      case .iPhone8:
        return iPhone8()
      case .X :
        return iPhoneX()
    }
  }

}

var instance = iPhoneFactory.produceIphone(type: .iPhone8)
print(type(of: instance)) // iPhone8
print(instance.screenSize) // 4.7

Singleton vs Static Factory

After having writing this article I realize how wrong it is to use singleton for a factory. Directly calling a static function allow to save memory (no singleton instantiated), writing less code and is a lot less verbose : iPhoneFactory.produceIphone(type: .iPhone8) compared to iPhoneFactory.sharedInstance.produceIphone(type: .iPhone8).

To conclude, a factory is a wrapper which instantiate multiple different objects (which implement an interface or protocol in Swift, inherit from a parent-class) based on parameters, here, an enum.
